Metal warehouse building: world-class solutions for every region
In the era of Industry 4.0 and global supply chain restructuring, metal warehouse building has emerged as a critical hub connecting production and consumption. As a leading global metal building supplier with 20 years of experience, Yirong Steel Structure Co., Ltd. will provide an in-depth analysis of the globalization practice of metal warehouses from three dimensions: material science, structural engineering, and regional adaptability.

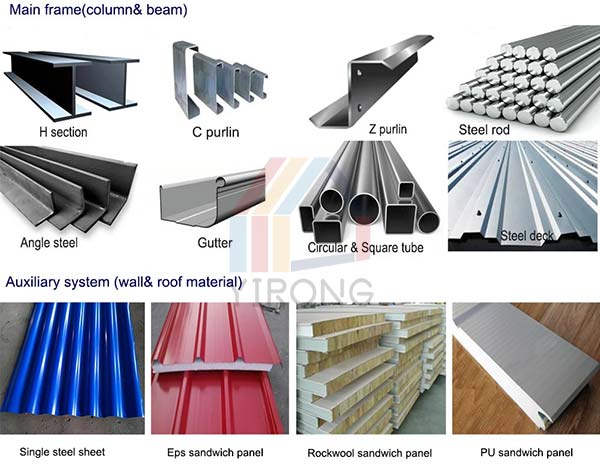

Innovations and Applications of Metal Warehouse Building Materials
1. Performance Upgrades of Main Structural Materials
High-Strength H-Beams: Using Q355B-grade steel (yield strength ≥355 MPa), these beams achieve 30% higher strength than traditional materials. Computer-optimized cross-sectional designs enable column-free spans exceeding 30 meters.
Modular C/Z-Sections: Cold-formed with ±0.5mm precision, these sections feature self-tapping screw connections, reducing construction time by 40% compared to traditional welding.
Advanced Galvanization:
Hot-Dip Galvanization: 85μm zinc layer provides over 1,000 hours of salt spray resistance, ideal for coastal environments.
Eco-Friendly Galvanization: Chromium-free passivation meets EU RoHS standards and North American LEED certification requirements.
2. Diversified Enclosure System Options
Material Type
Core Material
Application Scenarios
Performance Parameters
Polyurethane (PU) Sandwich Panel
95% closed-cell structure
Cold storage/cleanrooms
Thermal conductivity: 0.024 W/(m·K)
Rock Wool Sandwich Panel
A1 fire rating
Data centers
Fire resistance: ≥4 hours
Expanded Polystyrene (EPS) Sandwich Panel
Lightweight & high strength
Temporary storage
Compressive strength: ≥0.15 MPa
Galvalume Metal Sheet
55% aluminum-zinc alloy
Desert regions
UV resistance: 20+ years
Key Elements of Global Regionalized Design
1. Climate Adaptation Strategies
Nordic Frigid Zones
Double Insulation System: 150mm rock wool + 50mm PU achieves U-value ≤0.15 W/(m²·K).
Steep Roof Design: 35° pitch with electric snow-melting systems handle annual snow depths up to 2.5m.
Case Study: Stockholm Logistics Center uses phase-change material walls for winter heat storage.
Middle Eastern Desert Regions
Cool Roof Technology: White-colored steel sheets with >80% solar reflectance reduce roof temperatures by 20℃.
Evaporative Cooling: Rock wool panels with porous structures enable nighttime condensation for daytime cooling.
Case Study: Jeddah Free Trade Zone warehouse integrates PV roofing to meet 30% energy demands.
Case Study: Manila Logistics Hub maintained 100% structural integrity after a Category 5 typhoon.
2. Geological Condition Mitigation
Pacific Ring of Fire
Base Isolation Technology: Rubber bearings + friction pendulum systems reduce seismic response by 40%-60%.
Flexible Joints: Pin connections with dampers allow 3% inter-story drift without damage.
Case Study: Osaka Logistics Park passed 8-degree seismic resistance tests.
African Soft Soil Foundations
Composite Foundation: CFG piles + geogrids increase bearing capacity from 80kPa to 250kPa.
Lightweight Structures: Q460 high-strength steel reduces weight by 25%, minimizing foundation loads.
Case Study: Mombasa Port warehouse successfully managed 1.2m settlement.
3. Cultural Adaptation
Middle East: Sunshade grille designs compliant with Islamic architectural norms.
Europe: Modular, disassemblable structures meeting CE certification.
Latin America: Spanish technical documentation and localized construction standards.
Yirong Steel Structure: Global Service System
1. Supply Chain Network
7 Global Warehouses: Covering China, Southeast Asia, Middle East, Europe, North America, Africa, and Oceania.
Local Production Bases: Joint ventures in Vietnam, Turkey, and Mexico ensure 30-day delivery.
2. Technical Service Matrix
Multilingual Teams: Engineers fluent in English, Arabic, Spanish, etc.
International Certifications:
ISO 9001:2015 Quality Management System
EN 1090 CE (EXC3)
AWS D1.1 Welding Certification
3. Representative Projects
Moscow Cold Chain Center (Russia)
200mm rock wool panels maintain -25℃ environment.
Prefabricated modular cold doors boost installation efficiency by 60%.
Sydney E-Commerce Warehouse (Australia)
BIM-coordinated design with 3D clash detection.
IoT sensors monitor temperature, humidity, and structural health.
Mumbai Auto Parts Warehouse (India)
2,000-hour salt spray resistance system.
Rainwater recycling meets 40% water needs.
Industry Trends and Future Outlook
1. Sustainable Development
Green Materials: 35% recycled steel usage, aiming for carbon neutrality by 2030.
Smart Buildings: IoT integration reduces energy consumption by 20%-30%.
2. Technological Innovations
3D-Printed Metal Joints: Shorten customization time by 50% and reduce material waste by 15%.

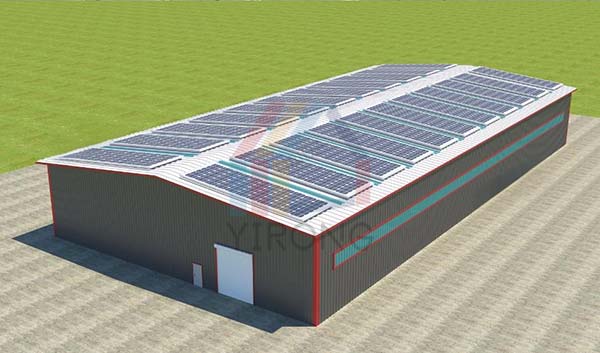

Building-Integrated Photovoltaics (BIPV): Roof power generation efficiency reaches 22%.
3. Market Expansion
Focus Regions: Emerging markets in Southeast Asia, Middle East, and Eastern Europe.
Strategic Partnerships: Joint labs with global logistics giants.
Conclusion
In an era of intensifying global competition, metal warehouse buildings have evolved beyond traditional storage to become strategic assets for enhancing supply chain resilience. Yirong Steel Structure leverages its three-dimensional capabilities in “material science + digital technology + localized services” to continuously create value for clients worldwide.
