297 square meter warehouse construction in Trinidad and Tobago
Under the bright Caribbean sun, on a construction site in Trinidad and Tobago, a modern warehouse, for which Yirong Steel Structure provided a one-stop solution, has officially entered the steel structure installation phase. This industrial building, measuring 12.2 meters (width) x 24.38 meters (length) x 6 meters (eave height), is about to rise from the ground with its robust double-pitched roof structure.
The installation work began with meticulous foundation re-measurement and preparation. After ensuring the concrete foundation elevation and anchor bolt positions were accurate, the hoisting of the steel columns officially commenced. The Q355B H-beam steel columns used form the support for the entire warehouse. This high-strength low-alloy steel, with its excellent yield strength and toughness, can easily withstand the strong winds and even seismic loads that may occur in the area. Each heavy H-beam steel column was slowly lifted by a large crane, and under the precise guidance of the engineers, the column base was steadily aligned and fitted with the foundation anchor bolts. After initial fixing with high-strength bolts, technicians immediately used a total station and theodolite to perform precise verticality calibration, ensuring that each column was perfectly vertical in both directions, laying a solid and straight foundation for the entire structure.
Next came the installation of the main steel beams, a crucial step in revealing the contours of the double-sloped roof. H-beams, also made of Q355B material, were connected to the column tops using a crane. Workers, operating from a high-altitude platform, skillfully used torque wrenches to insert high-strength bolts into the bolt holes of the gusset plates and tightened them one by one according to the preset torque values. This rigid connection ensured extremely high rigidity and load-bearing capacity at the beam-column joints. With the main beam at the highest point of the central ridge and the downward-sloping beams on both sides in place, the elegant and practical framework of the warehouse double-sloped roof was clearly visible. This structure not only has a simple design but also facilitates rapid drainage, making it ideal for tropical rainy climates.
After the main frame stood tall, the installation work shifted to the secondary structural systems. Lightweight yet robust galvanized C-shaped steel purlins were hoisted one by one onto the roof beams. Workers then vertically secured the purlins to the upper flanges of the main steel beams with bolts at predetermined intervals. The galvanized coating provides excellent corrosion protection, effectively resisting the high humidity and salinity corrosion of the marine environment, significantly extending the building’s service life. The installation of the purlin network acts like adding strong “ribs” to the main framework; it not only bears the weight of the subsequent roof panels but also greatly enhances the overall stability and lateral force resistance of the main steel frame.

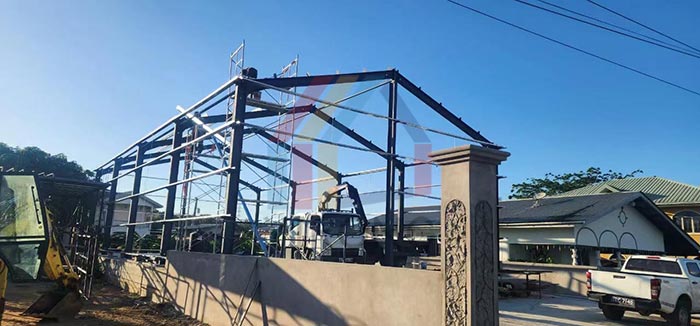

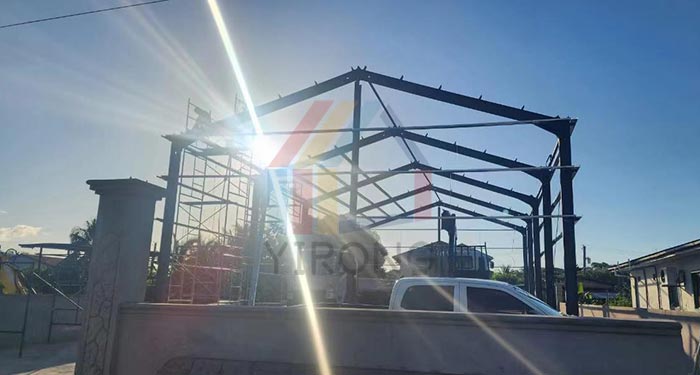

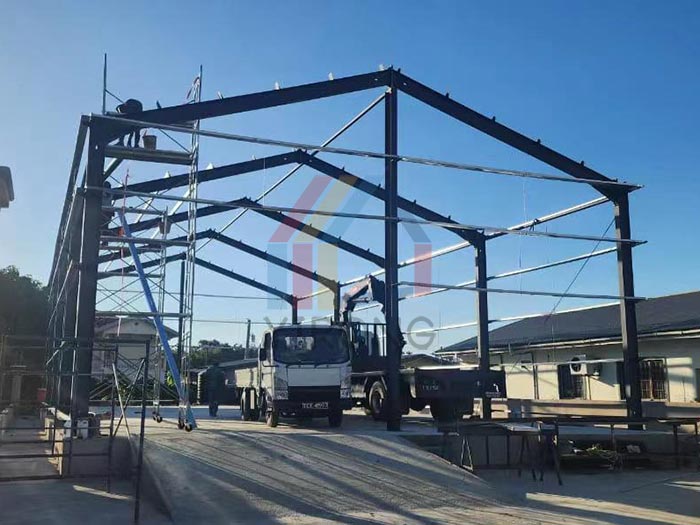

At this moment, standing on the construction site, the main steel structure of the warehouse is taking shape. Gray Q355B H-shaped steel beams and columns form a robust and powerful main frame, showcasing the unique strength of industrial architecture. The neatly arranged galvanized C-shaped steel purlins gleam with a metallic sheen in the sunlight, outlining the precise lines of the roof. The high-quality completion of this phase creates perfect conditions for the subsequent installation of roof panels, wall panels, and other auxiliary facilities. A robust, durable, and modern storage facility is steadily transforming from blueprint to reality.
