Steel structure installation for Dominican mortar warehouse

Project Name: mortar warehouse

Building Size: 24m*64m*6.5m

Mezzanine: 25m*10m*4.2m

Building Structural: steel structure

Column/Beam: H-shaped steel

Purlin: C/Z-shaped steel

Wall/Roof System: insulated sandwich panels

Double Slope Roof: 25 ° slope C-shaped purlins (spacing 1.2m) + wind resistant truss

Node Process: 10.9 grade high-strength bolt connection (coverage rate>95%)

Building Type: steel structure warehouse

Project Location: Dominican Republic

Construction Date: 2025-6-9

Service Life: Over 25 years

Project Description: The special mortar storage and transportation center tailored by Yirong Steel Building Manufacturer for Dominican customers has now entered the stage of rapid construction of the main steel structure. The mortar warehouse adopts a large-span double slope roof structure (span 2 × 24m), and achieves millimeter level precision assembly through a modular H-beam system. After completion, it can store 15000 tons of building materials, meeting the demand for post disaster reconstruction supply chain hubs in the Caribbean region.

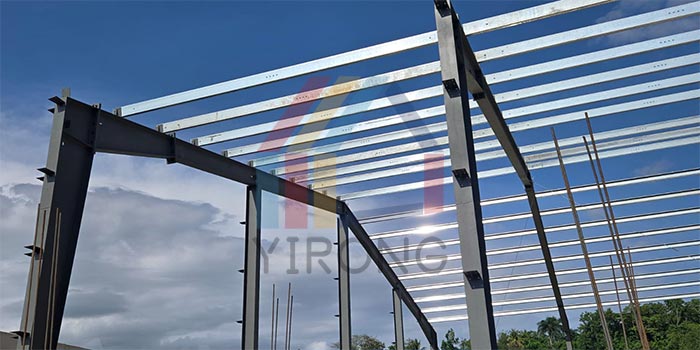

mortar warehouse steel structure installation

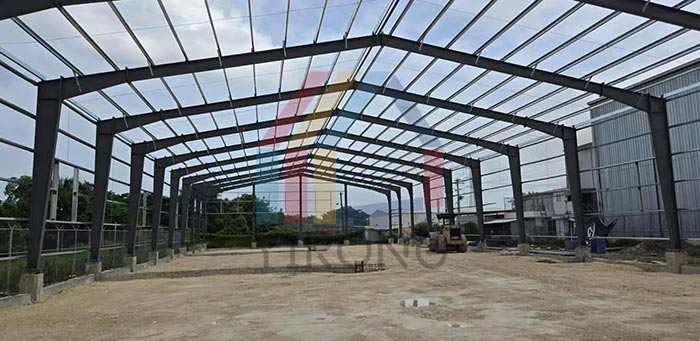

steel structure mortar warehouse

mortar warehouse steel structure installation
